1777846
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

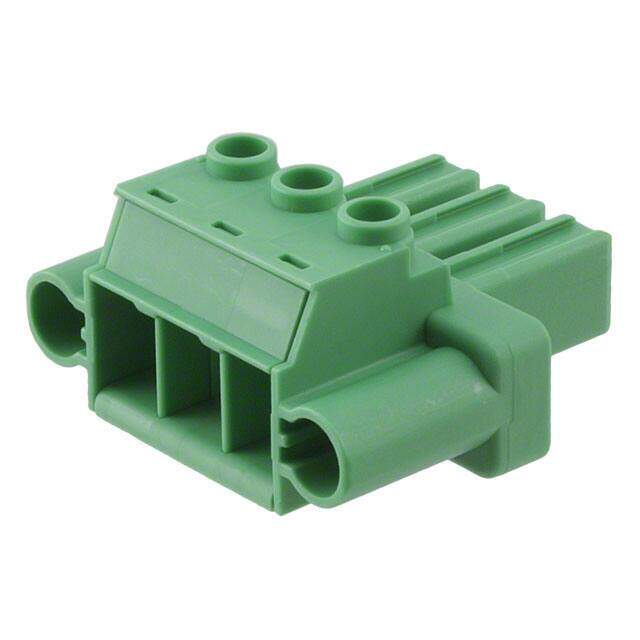

Conn Terminal Block F 3 POS 7.62mm Screw RA Cable Mount 41A
PDF
/
Buying Options
Total Price: USD $11.53
Unit Price: USD $11.525743
≥1 USD $11.525743
≥10 USD $10.873343
≥100 USD $10.257876
≥500 USD $9.677234
≥1000 USD $9.129464
Inventory: 9659
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series COMBICON PC
Feature Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 3
Color Green
Gender Female
Voltage - Rated 1kV
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 35.3mm
Insulation Height 0.776 19.70mm
Current Rating 41A
Termination Style Screw - Rising Cage Clamp
Approval Agency UL
Number of Contacts 3
Voltage 600V
Max Supply Voltage 1kV
Max Current Rating 41A
Number of Levels 1
Current 41A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Number of Poles 32
Wire Gauge or Range - AWG 8-24 AWG
Torque - Screw 0.5-0.8 Nm (4.4-7.1 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 10mm
Screw Size M3
Dimensions
Height 35.3mm
Length 38.09mm
Width 35.3mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
