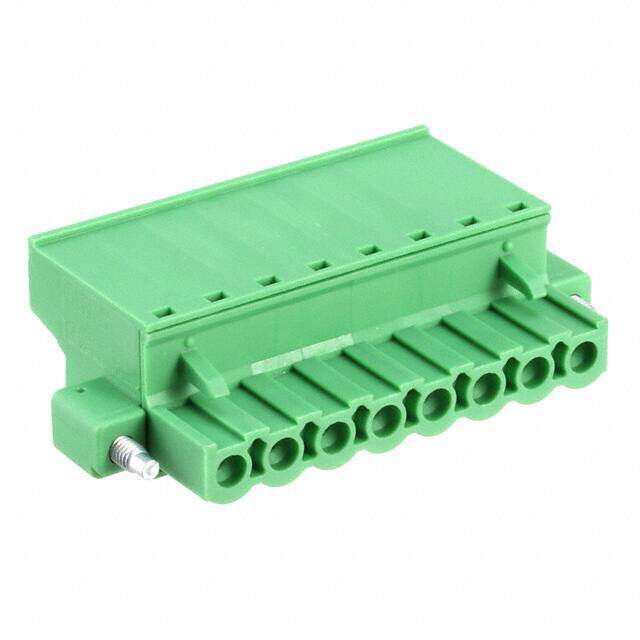

1777798
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $17.41
Unit Price: USD $17.4064
≥1 USD $17.4064
≥10 USD $16.93208
≥100 USD $15.82416
≥500 USD $14.55828
≥1000 USD $14.285709
Inventory: 120
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 135.000004g
Technical
Packaging Bulk
Published 2011
Series COMBICON FRONT-MSTB
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Insulation Height 1.083 27.51mm
Current Rating 12A
Termination Style Screw - Pressure Clip
Number of Contacts 8
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 12A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Screw Size M2.5
Wire Cross Section 2.5 mm2
Dimensions
Height 27.2mm
Length 15mm
Width 50.44mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
