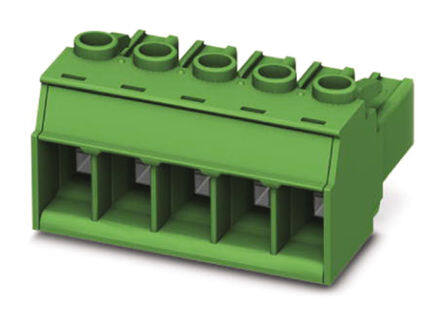

1777778 image
Favorite
1777778 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 7 Pos 7.62mm pitch Plug 24-8 AWG Screw
PDF
/
Buying Options
Total Price: USD $12.91
Unit Price: USD $12.9096
≥1 USD $12.9096
≥10 USD $12.55936
≥100 USD $11.73744
≥500 USD $10.79848
≥1000 USD $9.976842
≥3000 USD $9.507362
Inventory: 96
Minimum: 1
-
+

Technical Details

Technical

Contact Mating Finish Tin
Voltage - UL 600V
Wire Gauge or Range - AWG 8-24 AWG
Torque - Screw 0.5-0.8 Nm (4.4-7.1 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 10mm
Number of Positions Per Level 7
Screw Size M3
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 8 AWG
Current 41A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 41A
Reach Compliance Code not_compliant
Insulation Height 0.776 19.70mm
Depth 19.7mm
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Voltage - Rated 1kV
Gender Female
Color Green
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series COMBICON PC
Published 2011
Packaging Bulk

Dimensions

Length 35.5mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
