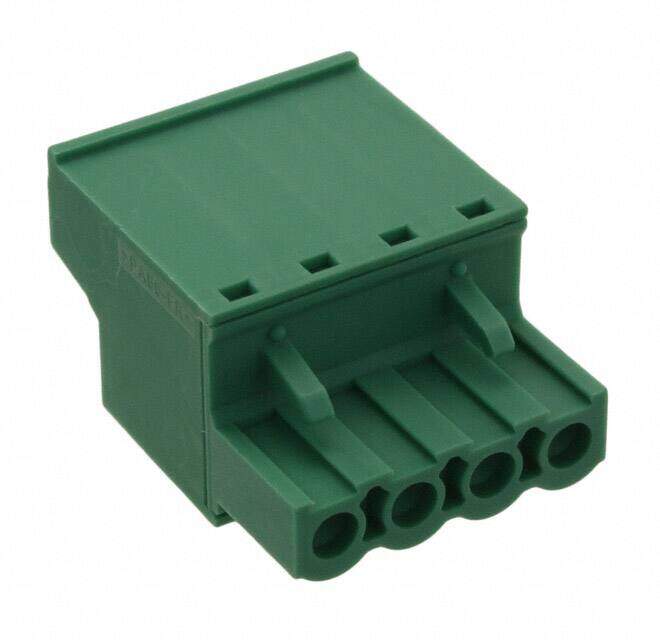

1777303
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $8.68
Unit Price: USD $8.6768
≥1 USD $8.6768
≥10 USD $8.44008
≥100 USD $7.88832
≥500 USD $7.257272
≥1000 USD $7.121382
Inventory: 237
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 27.2mm
Length 20.32mm
Height 20.32mm
Technical
Wire Cross Section 2.5 mm2
Screw Size M2.5
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval CB; CSA; CUL; EAC; UL; VDE
Number of Ways 4
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 250V
Voltage 300V
Number of Contacts 4
Approval Agency CB, CSA, VDE, cULus
Termination Style Screw - Pressure Clip
Current Rating 12A
Insulation Height 0.591 15.00mm
Depth 27.5mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON FRONT-MSTB
Published 2010
Packaging Bulk
Physical
Weight 134.000003g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, Plug-In
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
