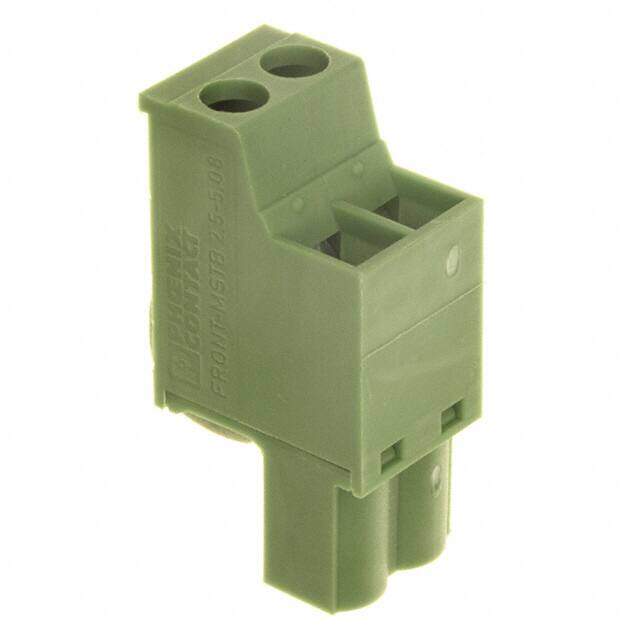

1777280
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $3.64
Unit Price: USD $3.6432
≥1 USD $3.6432
Inventory: 317
Minimum: 1
-
+
Technical Details
Technical
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Screw Size M2.5
Plug Wire Entry 180°
Safety Approval CB; CSA; CUL; EAC; UL; VDE
Number of Ways 2
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Max Current Rating 12A
Voltage 300V
Number of Contacts 2
Voltage - Rated AC 250V
Termination Style Screw - Pressure Clip
Current Rating 12A
Insulation Height 0.591 15.00mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, PA
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 2
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON FRONT-MSTB
Published 2003
Packaging Bulk
Dimensions
Height 15mm
Length 10.16mm
Width 27.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Physical
Weight 134.000003g
Housing Material Polyamide (PA), Nylon
Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper
Supply Chain
Factory Lead Time 7 Weeks
