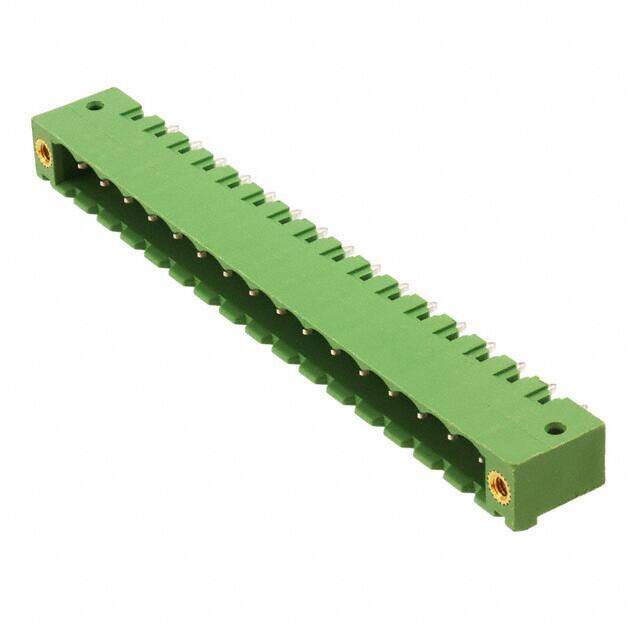

1777028
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 16POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $6.03
Unit Price: USD $6.028
≥1 USD $6.028
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 907.18474g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 16
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 12A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 16
Safety Approval UL
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
