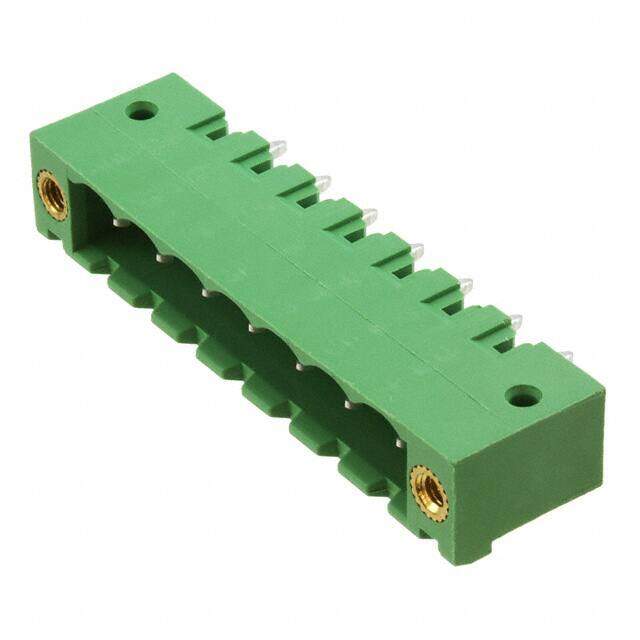

1776935 image
Favorite
1776935 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 7POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $4.64
Unit Price: USD $4.644619
≥1 USD $4.644619
≥10 USD $4.38171
≥100 USD $4.1337
≥500 USD $3.89971
≥1000 USD $3.678969
Inventory: 8544
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 4.120008g

Technical

Packaging Bulk
Published 2011
Series COMBICON MSTBV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 7
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.472 12.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 12A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 7
Safety Approval UL
Header Orientation Vertical

Dimensions

Height 15.9mm
Length 8.6mm
Width 45mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
