1776838
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

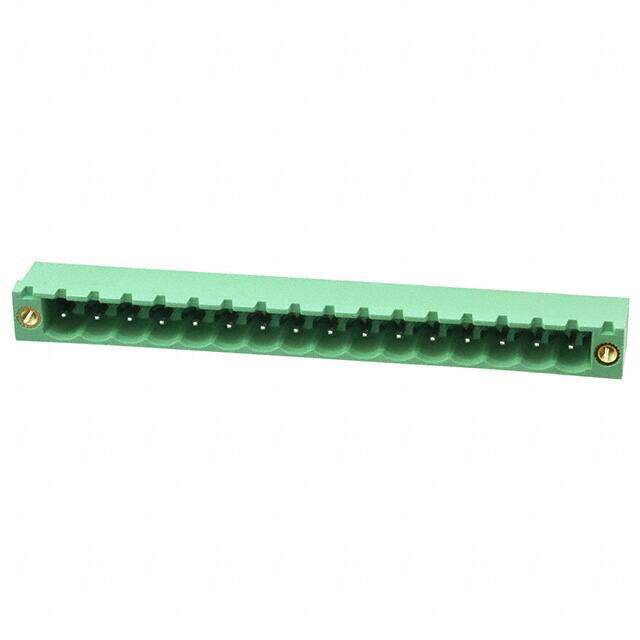

Pluggable Terminal Blocks 16 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.99
Unit Price: USD $6.9872
≥1 USD $6.9872
≥10 USD $6.79624
≥100 USD $6.35184
≥500 USD $5.843728
≥1000 USD $5.734291
Inventory: 323
Minimum: 1
-
+
Technical Details
Technical
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 16
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MSTB
Published 2011
Packaging Bulk
Number of Positions Per Level 16
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 16
Voltage - IEC 400V
Number of Decks 1
Current 15A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Physical
Weight 907.18474g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 90mm
Length 90mm
Height 12.1mm
