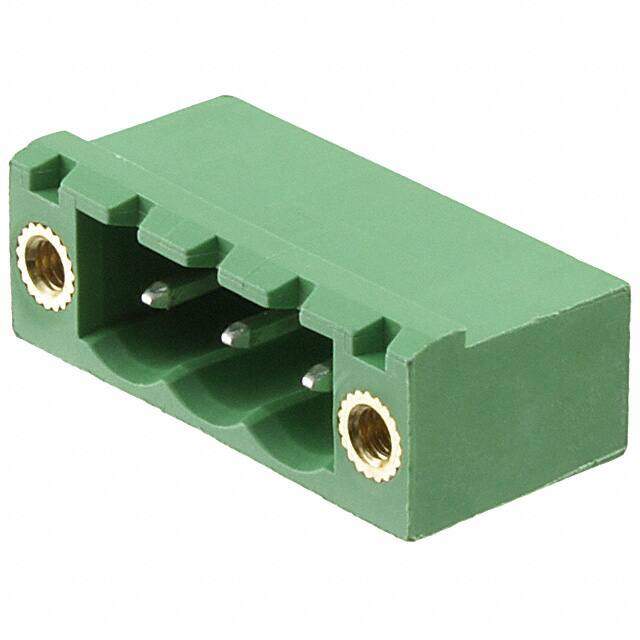

1776702
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Shrouded Header (4 Sides) HDR 3 POS 5mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.42
≥1 USD $2.42
≥10 USD $2.32232
≥100 USD $2.221648
≥500 USD $2.161016
≥1000 USD $2.0196
≥3000 USD $1.858032
Inventory: 347
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 2.960002g
Technical
Packaging Bulk
Published 2003
Series COMBICON MSTB
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Current - UL 15A
Voltage - IEC 400V
Number of Ways 3
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Height 12.1mm
Length 25mm
Width 25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
