1776566
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

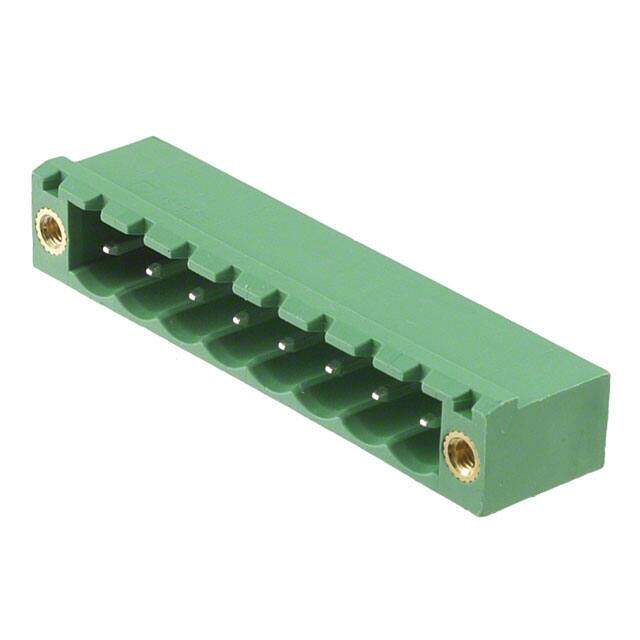

Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.23
Unit Price: USD $6.2304
≥1 USD $6.2304
≥10 USD $5.95936
≥100 USD $5.79656
≥500 USD $5.41728
≥1000 USD $4.983898
≥3000 USD $4.8906
Inventory: 1065
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 50.8mm
Length 50.8mm
Height 12.1mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 8
Header Orientation 90°, Right Angle
Safety Approval CB; CCA; CSA; CUL; EAC; GL; RS
Number of Ways 8
Voltage - IEC 400V
Current - UL 15A
Number of Decks 1
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Approval Agency CB, CSA, VDE, cULus
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Depth 12mm
Orientation Right Angle
Pitch 0.200 5.08mm
Additional Feature STANDARD: UL 94V-0, PBT, SAFETY APPROVAL: UL; VDE
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MSTB
Published 2010
Packaging Bulk
Physical
Weight 152.999995g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
