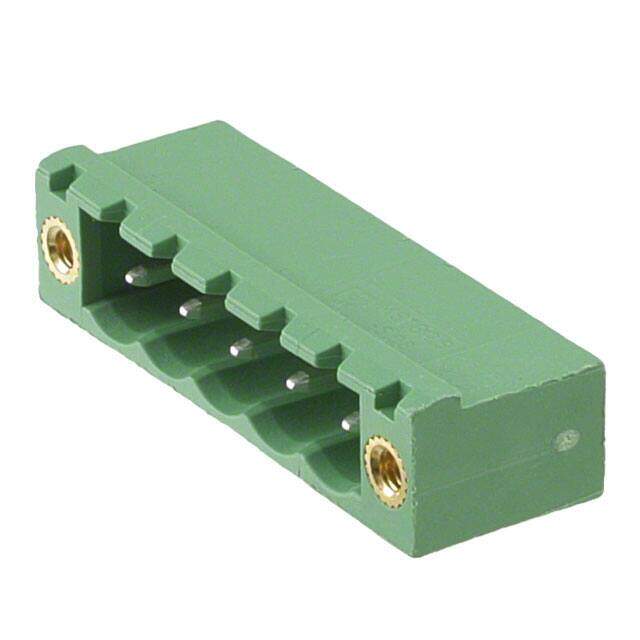

1776537 image
Favorite
1776537 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Shrouded Header (4 Sides) HDR 5 POS 5.08mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $4.05
Unit Price: USD $4.048
≥1 USD $4.048
≥10 USD $3.87992
≥100 USD $3.711312
≥500 USD $3.610112
≥1000 USD $3.37392
≥3000 USD $3.104024
Inventory: 509
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 152.999995g

Technical

Packaging Bulk
Published 2003
Series COMBICON MSTB
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature UL 94V-0, PBT, SAFETY APPROVAL: RS; UL; VDE
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Current - UL 15A
Voltage - IEC 400V
Number of Ways 5
Safety Approval CB; CCA; CSA; CUL; EAC; GL
Header Orientation 90°, Right Angle
Number of Positions Per Level 5
Fastening Method CONNECTOR

Dimensions

Height 12.1mm
Length 35.56mm
Width 35.56mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
