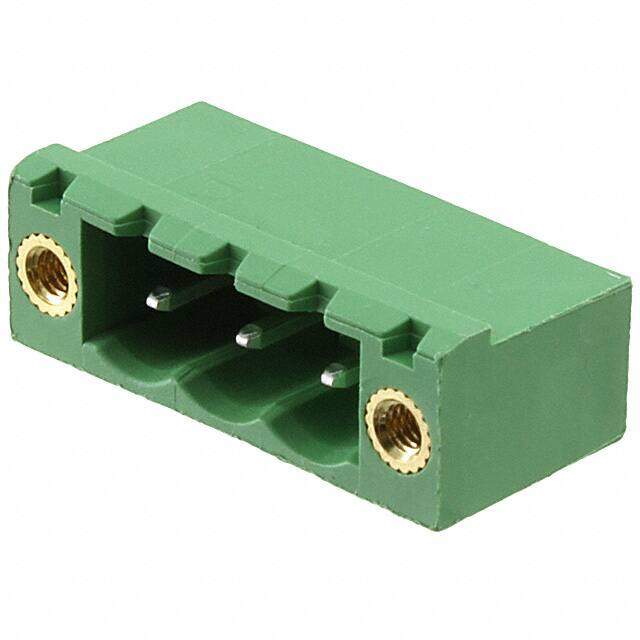

1776511
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block, Header, 3Pos, R/A, Th
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8656
≥1 USD $1.8656
Inventory: 1099
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 152.999995g
Technical
Packaging Bulk
Published 2003
Series COMBICON MSTB
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature STANDARD: UL 94V-0, PBT
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Current - UL 15A
Voltage - IEC 400V
Number of Ways 3
Safety Approval CB; CSA; CUL; GOST; UL; VDE
Header Orientation 90°, Right Angle
Number of Positions Per Level 3
Fastening Method CONNECTOR
Dimensions
Height 12.1mm
Length 25.4mm
Width 25.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
