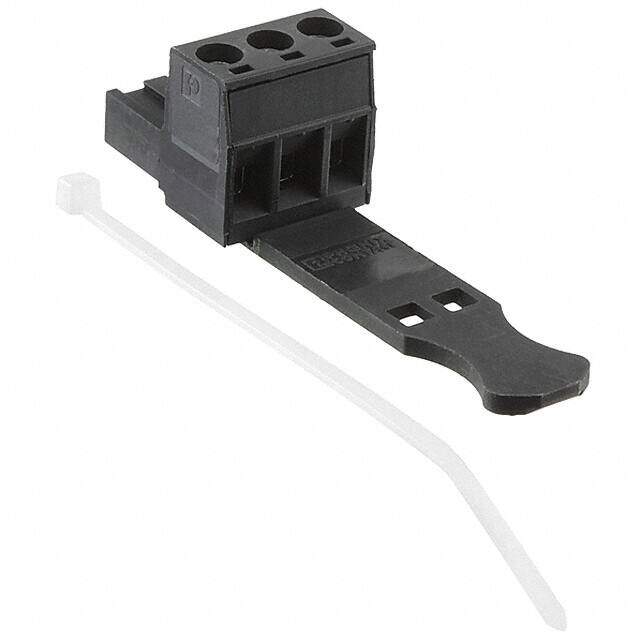

1776207 image
Favorite
1776207 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $5.04
Unit Price: USD $5.036103
≥1 USD $5.036103
≥10 USD $4.751037
≥100 USD $4.482113
≥500 USD $4.228409
≥1000 USD $3.989067
Inventory: 2225
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 61.8mm
Length 15.24mm
Height 39.5mm

Technical

Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 12A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Pitch 0.200 5.08mm
Voltage - Rated 250V
Color Black
Number of Positions 3
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side), Strain Relief
Series COMBICON MSTB
Published 2010
Packaging Bulk

Physical

Weight 6.479992g
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 5 Weeks
