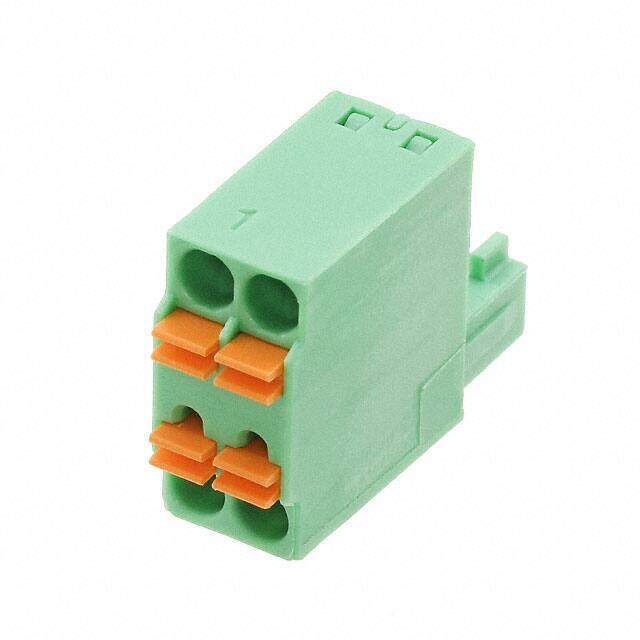

1772618
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 3.5mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.42
≥1 USD $2.42
Inventory: 88
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON TFMC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 2
Color Green
Gender Female
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.902 22.90mm
Current Rating 8A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1 (Mate), 2 (Input)
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Positions Per Level 2 (Mate), 4 (Input)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
