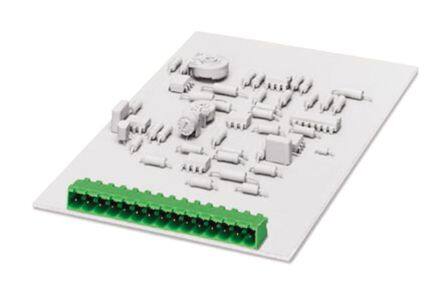

1770546
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 5mm pitch Through Hole Header
PDF
/
Inventory: 1197
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 8
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.327 8.30mm
Pitch 0.197 5.00mm
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBA
Published 2010
Packaging Bulk
Physical
Weight 1.050066kg
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 5 Weeks
