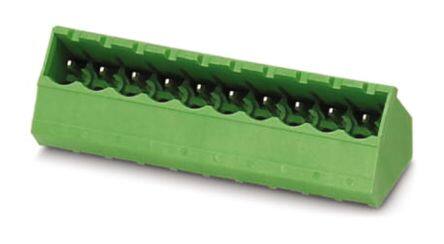

1769803
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.256773
≥1 USD $0.256773
≥10 USD $0.242245
≥100 USD $0.228527
≥500 USD $0.215595
≥1000 USD $0.203392
Inventory: 1866
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 2.05999g
Technical
Packaging Bulk
Published 2011
Series COMBICON SMSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation 45 deg
Depth 16.5mm
Insulation Height 0.583 14.80mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 2
Safety Approval UL; CSA
Header Orientation 45°
Dimensions
Height 14.8mm
Length 12mm
Width 16.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
