1768907
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

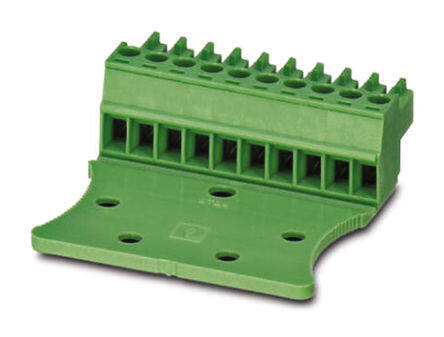

Pluggable Terminal Blocks 11 Pos 3.5mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $12.44
Unit Price: USD $12.439256
≥1 USD $12.439256
≥10 USD $11.735155
≥100 USD $11.07089
≥500 USD $10.444242
≥1000 USD $9.853057
Inventory: 8377
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Tin
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2014
Series COMBICON MC
Feature Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Voltage - UL 300V
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Number of Positions Per Level 11
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
