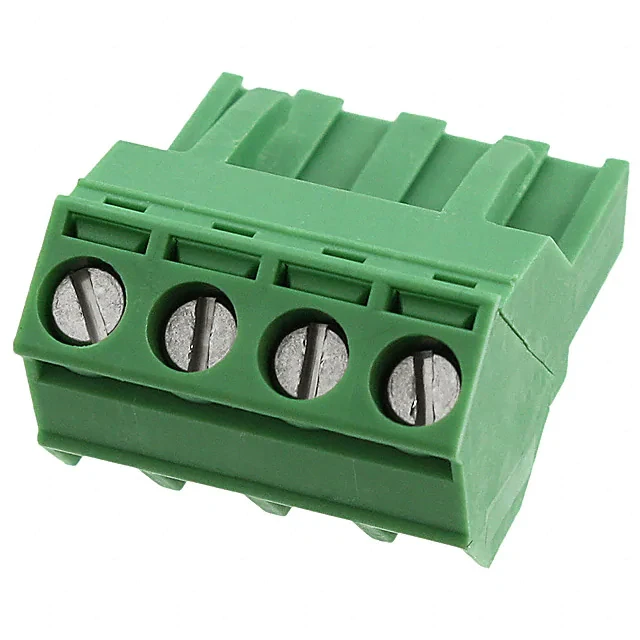

1768781
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $4.26
Unit Price: USD $4.2592
≥1 USD $4.2592
≥10 USD $4.14392
≥100 USD $3.87288
≥500 USD $3.563032
≥1000 USD $3.496346
Inventory: 427
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 2.100133kg
Technical
Packaging Bulk
Published 2008
Series COMBICON SMSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Pitch 0.197 5.00mm
Orientation Straight
Depth 15.5mm
Insulation Height 0.610 15.49mm
Reach Compliance Code not_compliant
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Approval Agency CSA, UL, cULus
Number of Contacts 4
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Safety Approval UL
Plug Wire Entry 225°
Wire Gauge or Range - mm2 0.2-2.5mm2
Screw Size M3
Stripping Length 7mm
Wire Cross Section 2.5 mm2
Dimensions
Height 15.5mm
Length 20mm
Width 25.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
