Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

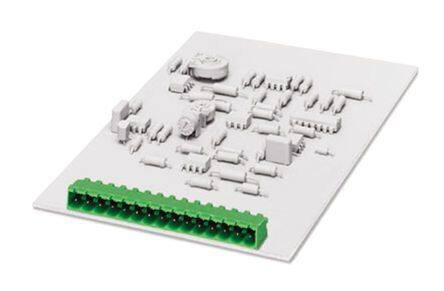

Description Pluggable Terminal Blocks 10 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Rated Voltage 250V
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 10
Voltage - IEC 400V
Current - UL 15A
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Termination Style Solder
Insulation Height 0.327 8.30mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Number of Rows 1
Color Green
Number of Positions 10
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBA
Published 2011
Packaging Bulk

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole

Supply Chain

Factory Lead Time 5 Weeks
