1767775
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

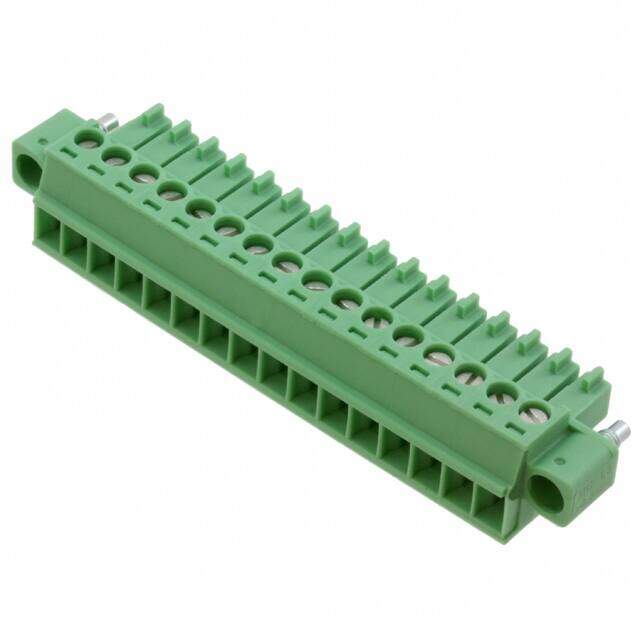

Socket enclosure - cable MC Total number of pins 16 Phoenix Contact 1767775 Contact spacing: 3.81 mm 50 pc(s)
PDF
/
Buying Options
Total Price: USD $10.92
Unit Price: USD $10.9208
≥1 USD $10.9208
Inventory: 156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON MC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 16
Color Green
Voltage - Rated 160V
Pitch 0.150 3.81mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
