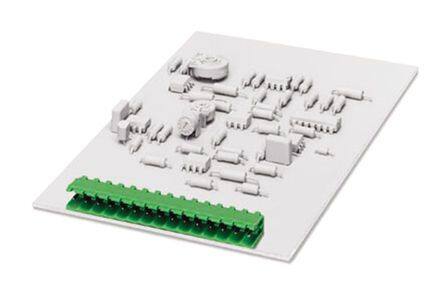

1767591 image
Favorite
1767591 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON SMSTBA RoHS Compliant 2011 45deg Terminal Block Header, Male Pins, Shrouded (4 Side) UL94V-0 45° 15A 300V
PDF
/
Buying Options
Total Price: USD $8.89
Unit Price: USD $8.890562
≥1 USD $8.890562
≥10 USD $8.387316
≥100 USD $7.912569
≥500 USD $7.464682
≥1000 USD $7.042158
Inventory: 9695
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 155.999998g

Technical

Packaging Bulk
Published 2011
Series COMBICON SMSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 24
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation 45 deg
Depth 16.5mm
Insulation Height 0.583 14.80mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
ELV Compliant
Max Current Rating 12A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 630V
Number of Ways 24
Safety Approval UL
Header Orientation 45°

Dimensions

Length 123.92mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
