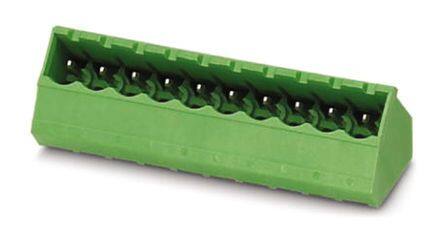

1767481
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 13 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 7709
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 155.999998g
Technical
Packaging Bulk
Published 2011
Series COMBICON SMSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 13
Color Green
Number of Rows 1
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation 45 deg
Insulation Height 0.583 14.80mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 15A
Number of Decks 1
Voltage - IEC 630V
Number of Ways 13
Safety Approval UL; CSA
Header Orientation 45°
Current - IEC 12A
Dimensions
Height 16.5mm
Length 14.8mm
Width 68.04mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
