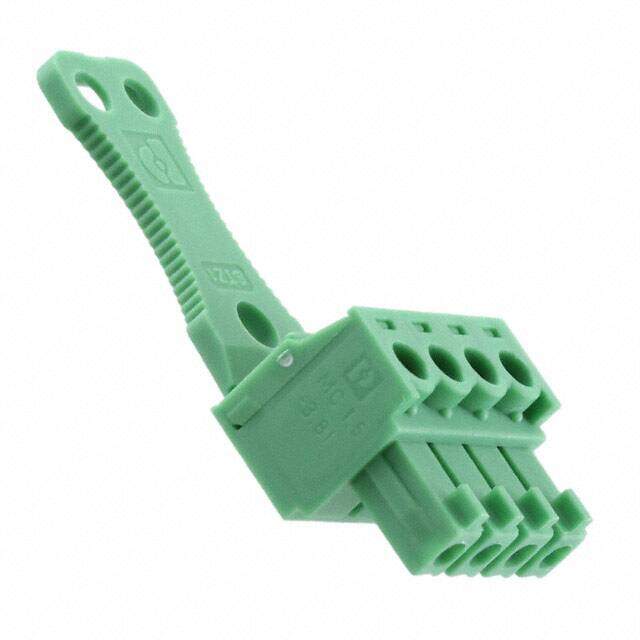

1767461 image
Favorite
1767461 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 4 Pos 3.81mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $4.25
Unit Price: USD $4.2504
≥1 USD $4.2504
≥10 USD $4.13512
≥100 USD $3.86496
≥500 USD $3.555816
≥1000 USD $3.4892
Inventory: 375
Minimum: 1
-
+

Technical Details

Technical

Gender Female
Voltage - Rated 160V
Pitch 0.150 3.81mm
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Strain Relief
Series COMBICON MC
Published 2010
Packaging Bulk
Screw Size M2
Number of Positions Per Level 4
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Reach Compliance Code not_compliant

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 41mm
Length 11.6mm
Height 14mm
