1767449
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

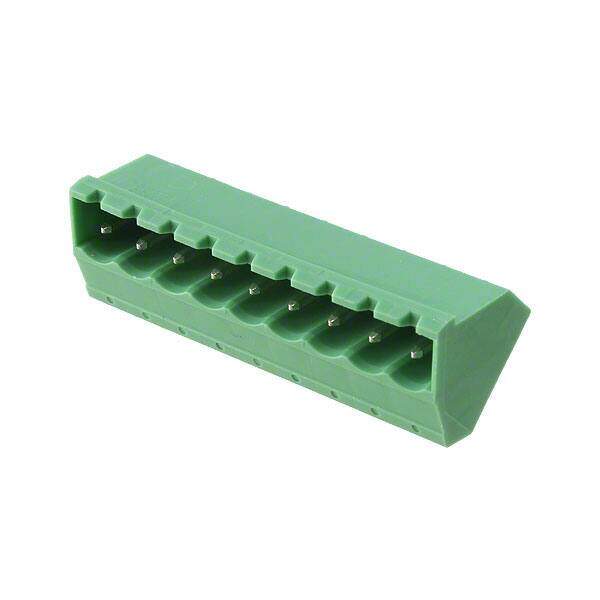

Pluggable Terminal Blocks 9 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.8
Unit Price: USD $2.7984
≥1 USD $2.7984
≥10 USD $2.72008
≥100 USD $2.54232
≥500 USD $2.338952
≥1000 USD $2.295146
Inventory: 92
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 155.999998g
Technical
Packaging Bulk
Published 2010
Series COMBICON SMSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Pitch 0.200 5.08mm
Orientation 45 deg
Depth 16.5mm
Insulation Height 0.583 14.80mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Number of Decks 1
Current - UL 15A
Voltage - IEC 630V
Number of Ways 9
Safety Approval UL; CSA
Header Orientation 45°
Number of Positions Per Level 9
Dimensions
Height 16.5mm
Length 47.72mm
Width 47.72mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
