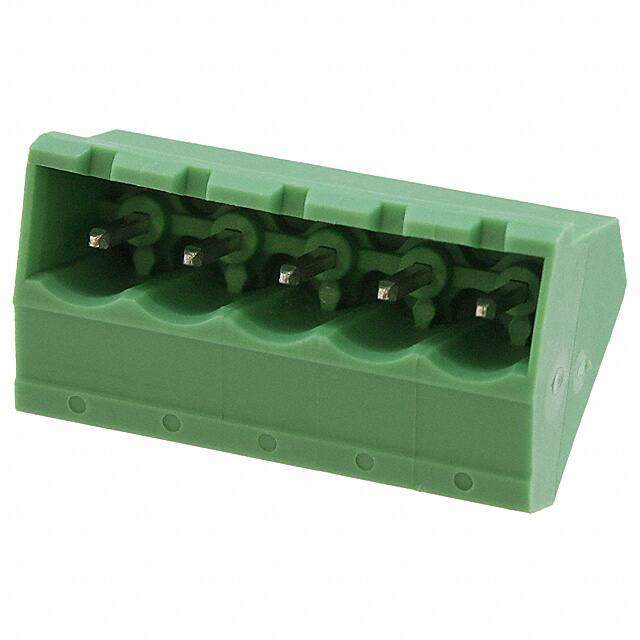

1767407 image
Favorite
1767407 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description SMSTBA Series; 5.08mm Pitch 5 Way 1 Row Straight PCB Header; Solder Term; 12A
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.6544
≥1 USD $1.6544
≥10 USD $1.58576
≥100 USD $1.542288
≥500 USD $1.44144
≥1000 USD $1.326125
≥3000 USD $1.301414
Inventory: 115
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 27.4mm
Length 27.4mm
Height 16.5mm

Technical

Number of Positions Per Level 5
Header Orientation 45°
Safety Approval UL; CSA
Number of Ways 5
Voltage - IEC 630V
Current - UL 15A
Number of Decks 1
Current 10A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.583 14.80mm
Depth 16.5mm
Orientation 45 deg
Pitch 0.200 5.08mm
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON SMSTBA
Published 2012
Packaging Bulk

Physical

Weight 155.999998g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
