1767384
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

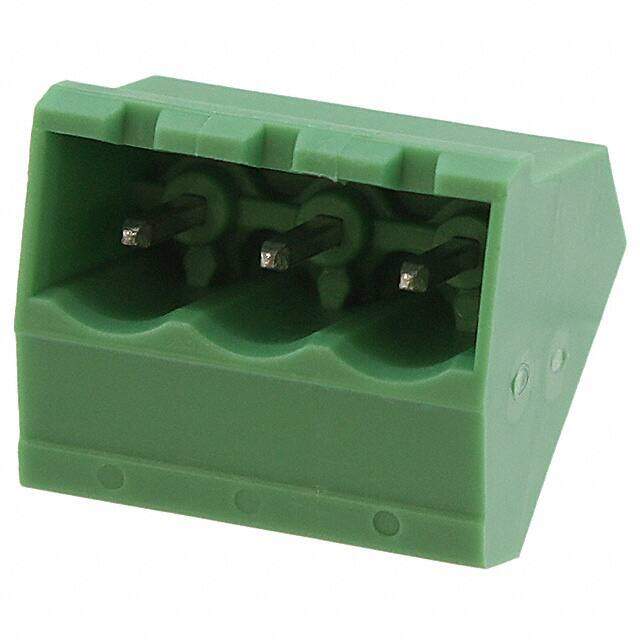

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.61798
≥1 USD $0.61798
≥10 USD $0.583
≥100 USD $0.55
≥500 USD $0.51887
Inventory: 1092
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 17.24mm
Length 17.24mm
Height 16.5mm
Technical
Fastening Method PLUG IN
Number of Positions Per Level 3
Header Orientation 45°
Safety Approval CSA; UL
Number of Ways 3
Voltage - IEC 630V
Current - UL 15A
Number of Decks 1
Current 10A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.583 14.80mm
Depth 16.5mm
Orientation 45 deg
Pitch 0.200 5.08mm
Additional Feature PA; 94V-2
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON SMSTBA
Published 2010
Packaging Bulk
Physical
Weight 155.999998g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
