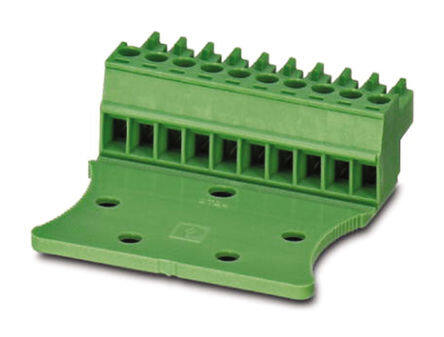

1767209
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 10 Pos 3.81mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $11.32
Unit Price: USD $11.319591
≥1 USD $11.319591
≥10 USD $10.678862
≥100 USD $10.074397
≥500 USD $9.504148
≥1000 USD $8.966188
Inventory: 1120
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M2
Number of Positions Per Level 10
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Voltage - UL 300V
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Reach Compliance Code not_compliant
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Gender Female
Color Green
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Strain Relief
Series COMBICON MC
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper
Supply Chain
Factory Lead Time 6 Weeks
