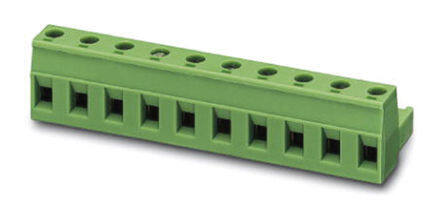

1767070
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 7.62mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $8.43
Unit Price: USD $8.428818
≥1 USD $8.428818
≥10 USD $7.440204
≥30 USD $6.83627
≥100 USD $4.171083
Inventory: 3190
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 166.000009g
Technical
Packaging Bulk
Published 2011
Series COMBICON GMSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 9
Color Green
Number of Rows 1
Voltage - Rated 400V
Voltage - Rated DC 500V
Pitch 0.300 7.62mm
Orientation Right Angle
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Lead Pitch 7.62mm
Number of Contacts 9
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 9
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Dimensions
Height 18.2mm
Length 15mm
Width 66.58mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
