1767038
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

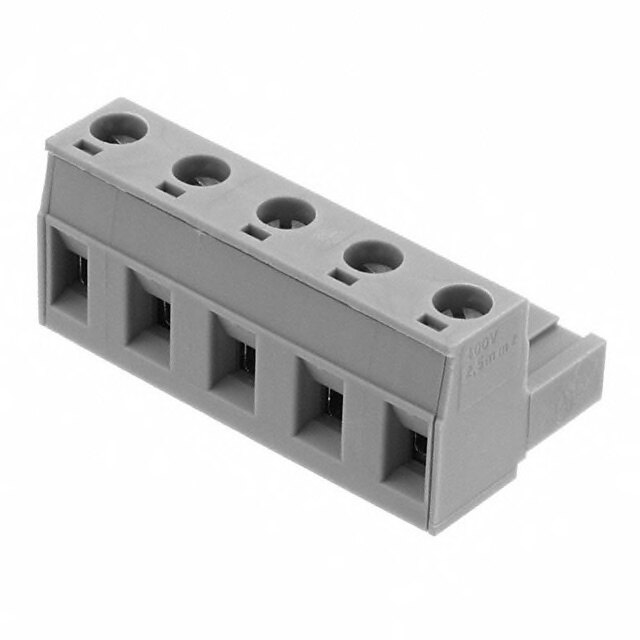

Conn Terminal Blocks F 5 POS 7.62mm Screw RA Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $7.34
Unit Price: USD $7.3392
≥1 USD $7.3392
≥10 USD $7.13504
≥100 USD $6.66864
≥500 USD $6.135184
≥1000 USD $6.020291
Inventory: 113
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper
Mount Cable, Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 166.000009g
Technical
Packaging Bulk
Published 2010
Series COMBICON GMSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 400V
Additional Feature PA, 94V-2
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 18.2mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 5
Voltage 300V
Max Supply Voltage 400V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 5
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Dimensions
Height 18.2mm
Length 36.1mm
Width 36.1mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
