1766835
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

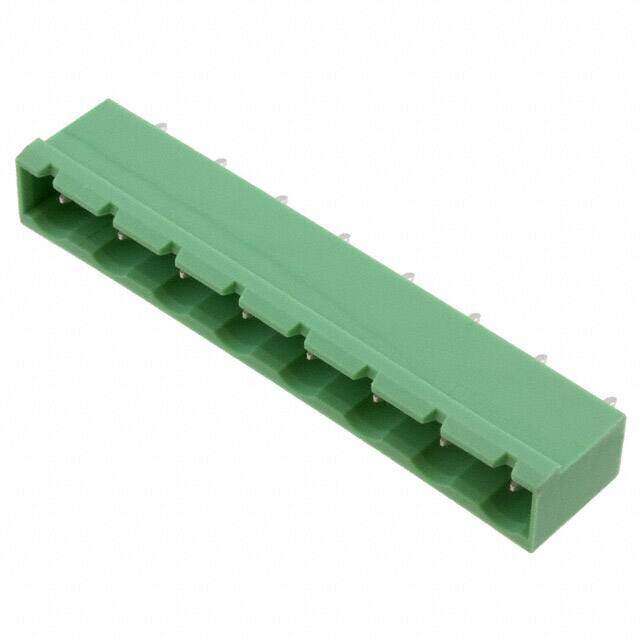

Pluggable Terminal Blocks 8 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.31
Unit Price: USD $4.310608
≥1 USD $4.310608
≥10 USD $4.066607
≥100 USD $3.836423
≥500 USD $3.619268
≥1000 USD $3.414402
Inventory: 7983
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 60.96mm
Length 60.96mm
Height 15.9mm
Technical
Number of Positions Per Level 8
Header Orientation Vertical
Safety Approval UL
Number of Ways 8
Voltage - IEC 630V
Current - UL 15A
Number of Decks 1
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.300 7.62mm
Additional Feature PA, 94V-0
Voltage - Rated 400V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON GMSTBVA
Published 2003
Packaging Bulk
Physical
Weight 176.999992g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper
Supply Chain
Factory Lead Time 4 Weeks
