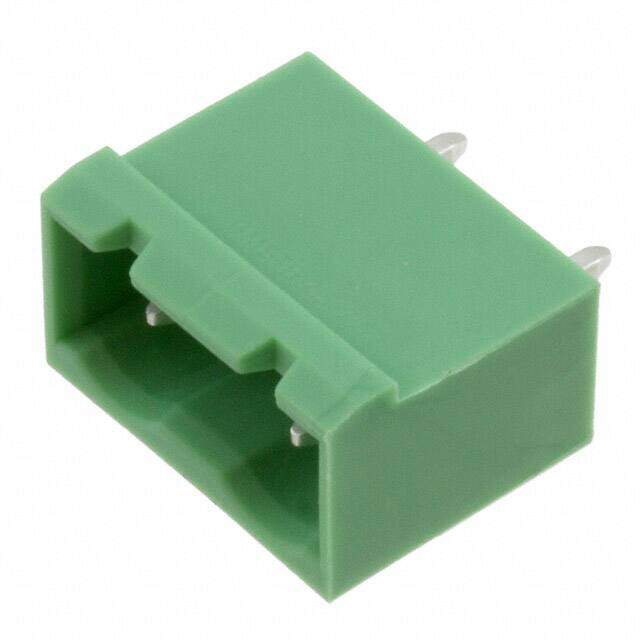

1766770 image
Favorite
1766770 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 2 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.0736
≥1 USD $1.0736
≥10 USD $1.0296
≥100 USD $0.984544
≥500 USD $0.957616
≥1000 USD $0.89496
≥3000 USD $0.823363
Inventory: 1139
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 15.9mm
Length 15.24mm
Height 15.24mm

Technical

Fastening Method CONNECTOR
Header Orientation Vertical
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Number of Ways 2
Voltage - IEC 630V
Current - UL 15A
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 2
Current 10A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Contact Gender Male
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
Voltage - Rated 400V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON GMSTBVA
Published 2010
Packaging Bulk

Physical

Weight 176.999992g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper

Supply Chain

Factory Lead Time 7 Weeks
