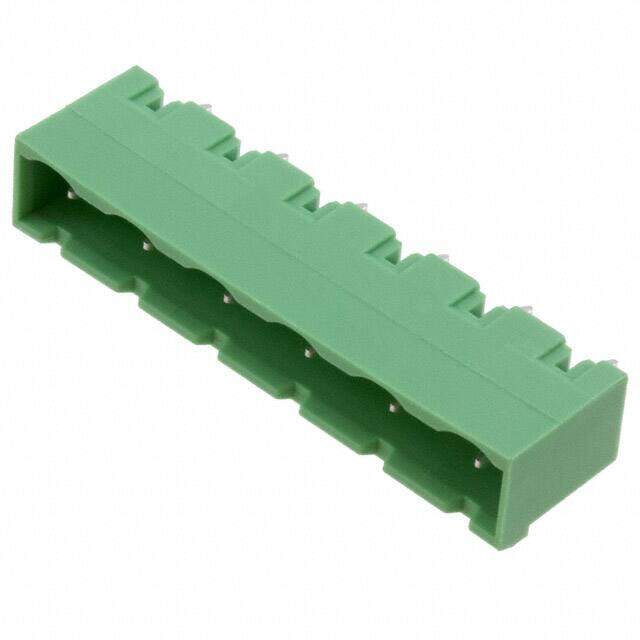

1766709 image
Favorite
1766709 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 6 Pos 7.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.42
≥1 USD $2.42
Inventory: 177
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 2.100133kg

Technical

Packaging Bulk
Published 2005
Series COMBICON GMSTBVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
Voltage - Rated DC 400V
Pitch 0.295 7.50mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.472 12.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Number of Poles 6
Number of Decks 1
Current - UL 15A
Voltage - IEC 630V
Number of Ways 6
Safety Approval UL
Header Orientation Vertical

Dimensions

Height 15.9mm
Length 45mm
Width 45mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
