1766673
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

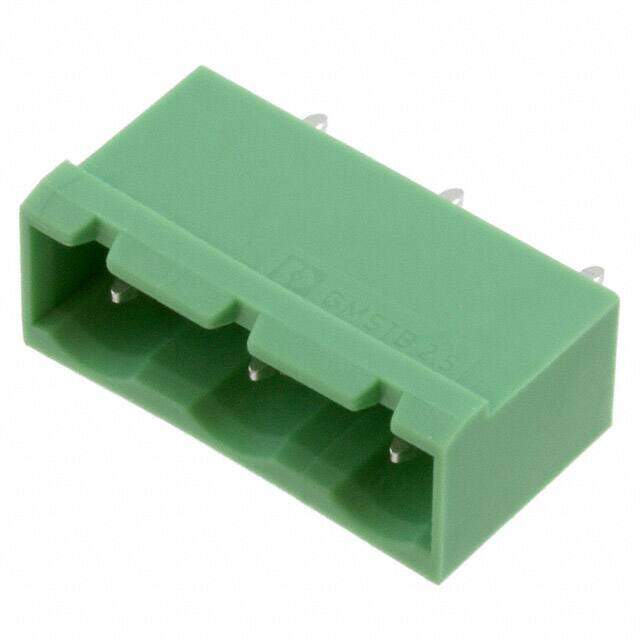

Pluggable Terminal Blocks 3 Pos 7.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.55
Unit Price: USD $1.5488
≥1 USD $1.5488
≥10 USD $1.48456
≥100 USD $1.420144
≥500 USD $1.381336
≥1000 USD $1.29096
≥3000 USD $1.187683
Inventory: 771
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 2.050011g
Technical
Packaging Bulk
Published 2010
Series COMBICON GMSTBVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, UL 94V-0, SAFETY APPROVAL VDE
Voltage - Rated DC 400V
Pitch 0.295 7.50mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Number of Poles 3
Number of Decks 1
Current - UL 15A
Voltage - IEC 630V
Number of Ways 3
Safety Approval CCA; CB; CSA; CUL; GOST; UL
Header Orientation Vertical
Fastening Method CONNECTOR
Dimensions
Height 15.9mm
Length 22.5mm
Width 22.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
