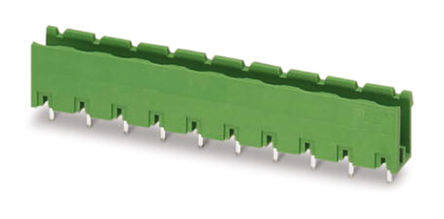

1766631
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 7.62mm pitch Through Hole Header
PDF
/
Inventory: 6694
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 175.999991g
Technical
Packaging Bulk
Published 2010
Series COMBICON GMSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 9
Color Green
Number of Rows 1
Voltage - Rated 400V
Pitch 0.300 7.62mm
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Number of Decks 1
Current - UL 15A
Voltage - IEC 630V
Number of Ways 9
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 15.9mm
Length 66.78mm
Width 66.78mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
