1766592
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

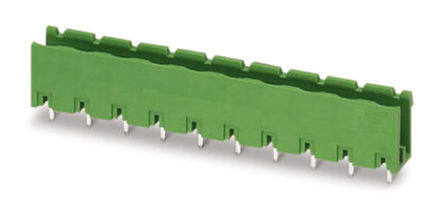

Terminal block; Header; Male Pins; (2 Side); 5 pos; 0.300"(7.62mm) pitch; 15A; 300V
PDF
/
Buying Options
Total Price: USD $2.89
Unit Price: USD $2.893505
≥1 USD $2.893505
≥10 USD $2.729725
≥100 USD $2.575208
≥500 USD $2.429451
≥1000 USD $2.29193
Inventory: 7964
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 175.999991g
Technical
Packaging Bulk
Published 2011
Series COMBICON GMSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 5
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
Pitch 0.300 7.62mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 15A
Number of Decks 1
Voltage - IEC 630V
Number of Ways 5
Safety Approval UL
Header Orientation Vertical
Current - IEC 12A
Dimensions
Height 15.9mm
Length 8.6mm
Width 36.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
