1766534
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

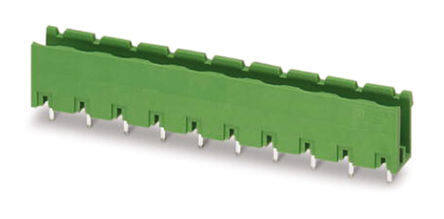

Pluggable Terminal Blocks 10 Pos 7.5mm pitch Through Hole Header
PDF
/
Inventory: 1168
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.200205kg
Technical
Packaging Bulk
Published 2011
Series COMBICON GMSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 10
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.295 7.50mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 630V
Number of Ways 10
Safety Approval UL
Header Orientation Vertical
Current - IEC 12A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
