1766440
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

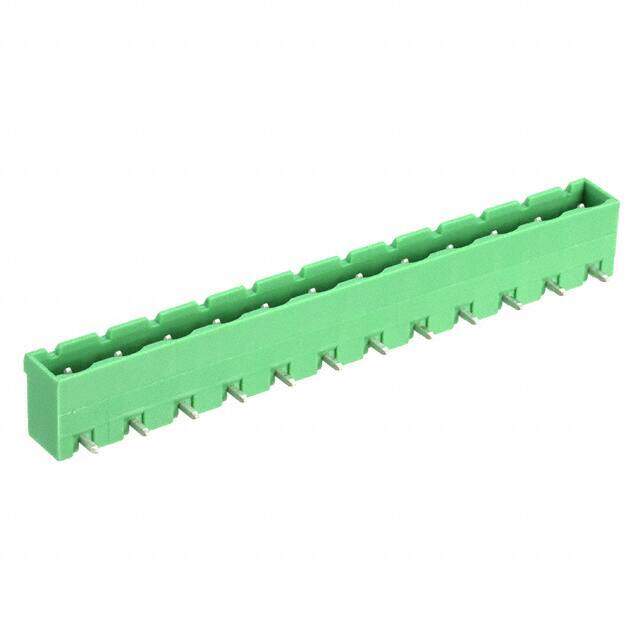

Pluggable Terminal Blocks 12 Pos 7.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.74
Unit Price: USD $5.7376
≥1 USD $5.7376
≥10 USD $5.58448
≥100 USD $5.21928
≥500 USD $4.80172
≥1000 USD $4.711837
Inventory: 154
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.200205kg
Technical
Packaging Bulk
Published 2005
Series COMBICON GMSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.295 7.50mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Number of Poles 12
Contact Mating Finish Tin
Number of Decks 1
Current - UL 15A
Voltage - IEC 630V
Number of Ways 12
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Length 60mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
