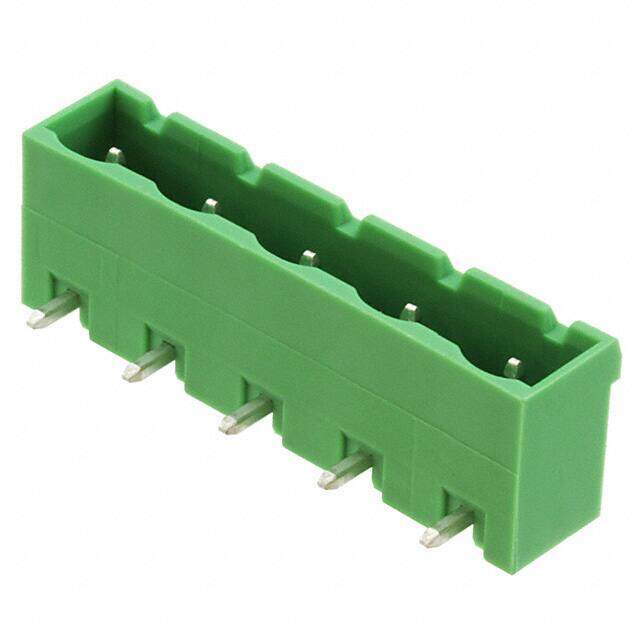

1766372
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn; TermBlk; PCB; Header; SnglLvl; 90DegAngl; Sldr; 5Pole; 7.5mmPitch; COMBICON
PDF
/
Buying Options
Total Price: USD $2.89
Unit Price: USD $2.8864
≥1 USD $2.8864
≥10 USD $2.7632
≥100 USD $2.64264
≥500 USD $2.570568
≥1000 USD $2.4024
≥3000 USD $2.210208
Inventory: 299
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12mm
Length 37.5mm
Technical
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 5
Voltage - IEC 630V
Current - UL 15A
Number of Decks 1
Number of Poles 5
Current 10A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Depth 12mm
Orientation Right Angle
Pitch 0.295 7.50mm
Voltage - Rated DC 400V
Additional Feature PA, 94V-0
Voltage - Rated 400V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON GMSTBA
Published 2005
Packaging Bulk
Physical
Weight 2.100133kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
