RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

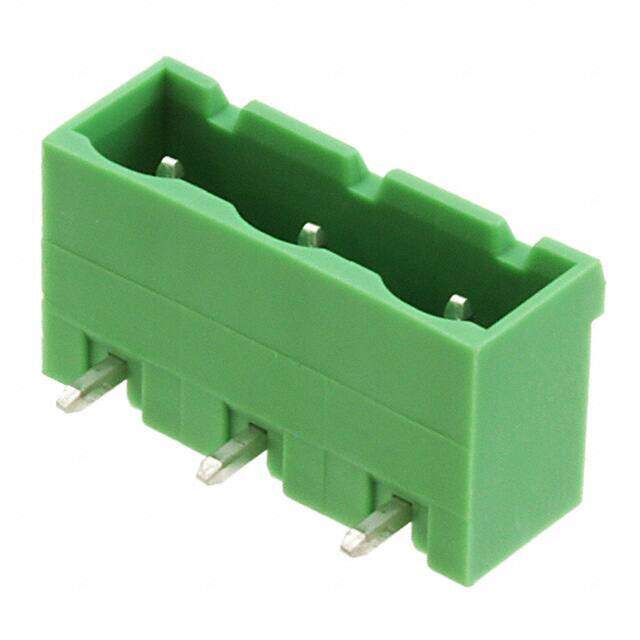

Description Pluggable Terminal Blocks 3 Pos 7.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.55
Unit Price: USD $1.5488
≥1 USD $1.5488
≥10 USD $1.48456
≥100 USD $1.420144
≥500 USD $1.381336
≥1000 USD $1.29096
≥3000 USD $1.187683
Inventory: 388
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 22.5mm
Length 22.5mm
Height 12.1mm

Technical

Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 3
Voltage - IEC 630V
Current - UL 15A
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 3
Current 10A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Depth 12mm
Orientation Right Angle
Pitch 0.295 7.50mm
Voltage - Rated DC 400V
Additional Feature PA, 94V-0
Voltage - Rated 400V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON GMSTBA
Published 2011
Packaging Bulk

Physical

Weight 2.069005g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
