1766301
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

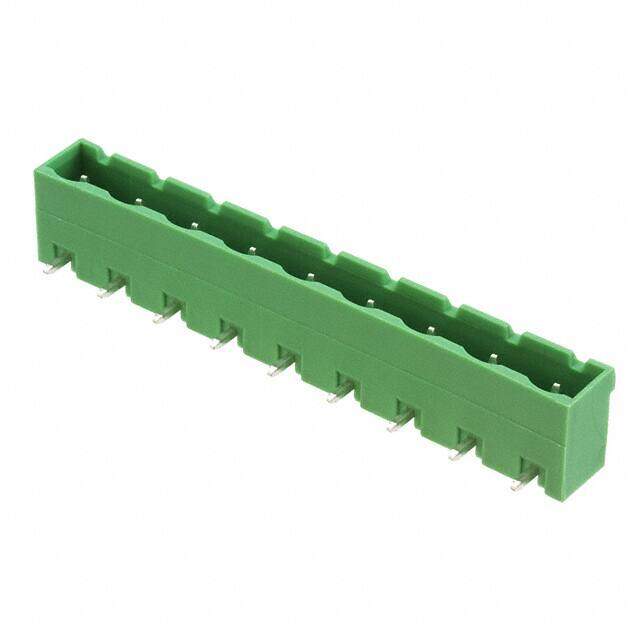

Pluggable Terminal Blocks 9 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.11
Unit Price: USD $5.113164
≥1 USD $5.113164
≥10 USD $4.823734
≥100 USD $4.550699
≥500 USD $4.293115
≥1000 USD $4.050108
Inventory: 4976
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 174.99999g
Technical
Packaging Bulk
Published 2011
Series COMBICON GMSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 9
Color Green
Number of Rows 1
Voltage - Rated 400V
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Number of Decks 1
Current - UL 15A
Voltage - IEC 630V
Number of Ways 9
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Height 18.5mm
Length 68.58mm
Width 68.58mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
