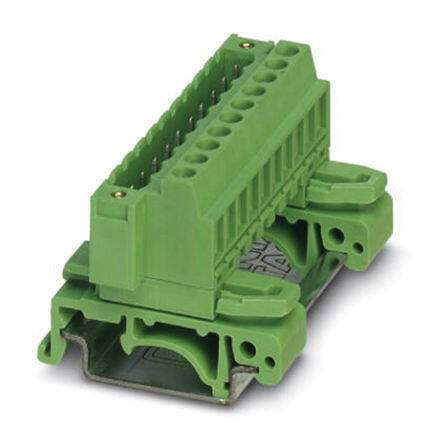

1766220
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.06
Unit Price: USD $6.064981
≥1 USD $6.064981
≥10 USD $5.721683
≥100 USD $5.397814
≥500 USD $5.092283
≥1000 USD $4.804038
Inventory: 2056
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 173.999989g
Technical
Packaging Bulk
Published 2011
Series COMBICON GMSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 12
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 400V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Number of Decks 1
Current - UL 15A
Voltage - IEC 630V
Number of Ways 12
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Length 89.64mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
