1766136
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

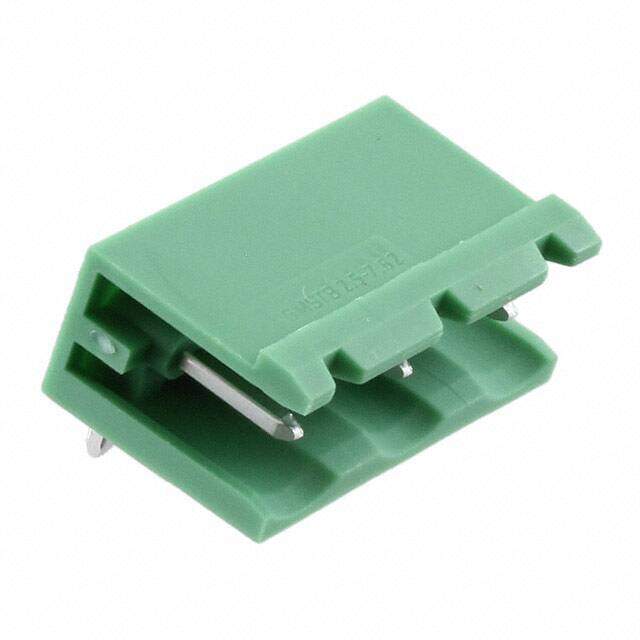

Pluggable Terminal Blocks 3 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2144
≥1 USD $1.2144
Inventory: 61
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 173.999989g
Technical
Packaging Bulk
Published 2014
Series COMBICON GMSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Decks 1
Voltage - IEC 630V
Number of Ways 3
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 3
Dimensions
Height 18.5mm
Length 21.06mm
Width 21.06mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
