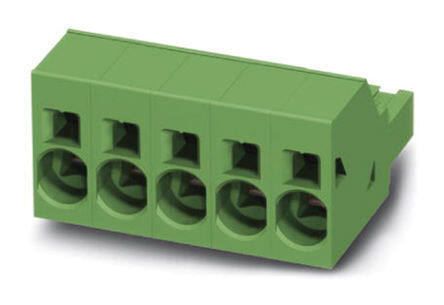

1766084
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 7.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.6
Unit Price: USD $4.596092
≥1 USD $4.596092
≥10 USD $4.335933
≥100 USD $4.090507
≥500 USD $3.858967
≥1000 USD $3.640533
Inventory: 9544
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 9
Voltage - IEC 630V
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Pitch 0.295 7.50mm
Voltage - Rated 400V
Number of Rows 1
Color Green
Number of Positions 9
Type Header, Male Pins, Shrouded (2 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON GMSTB
Published 2012
Packaging Bulk
Physical
Weight 749.788188g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 5 Weeks
