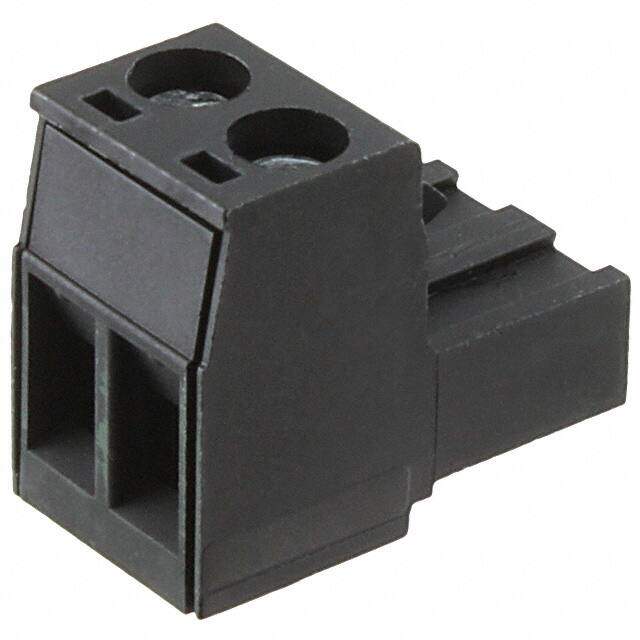

1765551
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $2.86
Unit Price: USD $2.86
≥1 USD $2.86
≥10 USD $2.77992
≥100 USD $2.59776
≥500 USD $2.389904
≥1000 USD $2.3452
Inventory: 251
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Plastic
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTB
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 2
Color Black
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Reach Compliance Code not_compliant
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Gold
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
