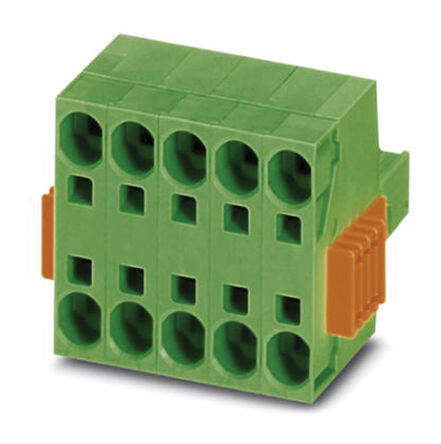

1765463 image
Favorite
1765463 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON TSPC RoHS Compliant 2011 Latch Lock Terminal Block Plug, Female Sockets 24AWG 180° 31A 600V
PDF
/
Buying Options
Total Price: USD $63.44
Unit Price: USD $63.436702
≥1 USD $63.436702
≥200 USD $25.311399
≥500 USD $24.465892
≥1000 USD $24.048389
Inventory: 1160
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2011
Series COMBICON TSPC
Feature Latch Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Number of Positions 7
Color Green
Gender Female
Voltage - Rated 1kV
Pitch 0.197 5.00mm
Insulation Height 1.380 35.05mm
Current Rating 41A
Termination Style Screwless - Push-In Spring
Voltage 600V
Number of Levels 1 (Mate), 2 (Input)
Current 31A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 8-24 AWG
Voltage - IEC 1kV
Positions Per Level 7 (Mate), 14 (Input)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 15mm
Current - IEC 41A

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
