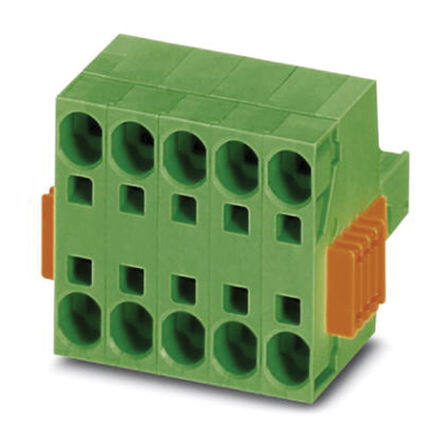

1765447
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 7.62mm pitch Plug 24-8 AWG Spring
PDF
/
Buying Options
Total Price: USD $45.34
Unit Price: USD $45.337063
≥1 USD $45.337063
≥200 USD $18.090449
≥500 USD $17.485202
≥1000 USD $17.187174
Inventory: 9031
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 41A
Wire Strip Length 15mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Positions Per Level 5 (Mate), 10 (Input)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 8 AWG
Wire Gauge (Max) 24 AWG
Current 31A
Number of Levels 1 (Mate), 2 (Input)
Voltage 600V
Termination Style Screwless - Push-In Spring
Current Rating 41A
Insulation Height 1.380 35.05mm
Pitch 0.197 5.00mm
Voltage - Rated 1kV
Gender Female
Color Green
Number of Positions 5
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Latch Lock
Series COMBICON TSPC
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
