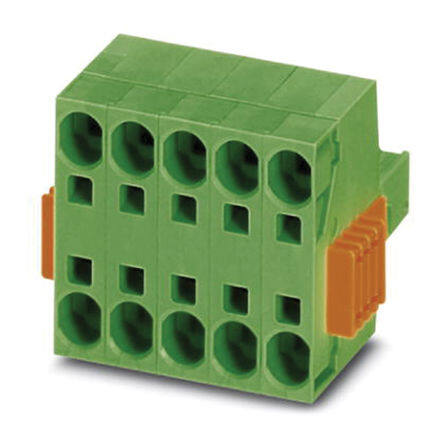

1765421
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 7.62mm pitch Plug 24-8 AWG Spring
PDF
/
Buying Options
Total Price: USD $10.93
Unit Price: USD $10.9296
≥1 USD $10.9296
≥10 USD $10.2168
≥100 USD $9.399456
≥500 USD $8.68428
≥1000 USD $8.275626
≥3000 USD $7.804509
Inventory: 60
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON TSPC
Feature Latch Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Number of Positions 3
Color Green
Gender Female
Voltage - Rated 1kV
Pitch 0.197 5.00mm
Insulation Height 1.380 35.05mm
Current Rating 41A
Termination Style Screwless - Push-In Spring
Voltage 600V
Number of Levels 1 (Mate), 2 (Input)
Current 31A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 8-24 AWG
Voltage - IEC 1kV
Positions Per Level 3 (Mate), 6 (Input)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 15mm
Current - IEC 41A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
