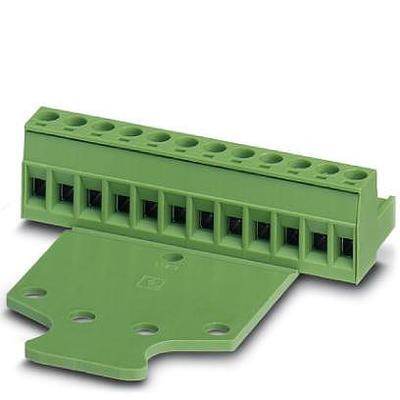

1764086
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Socket enclosure - cable MVSTBR Total number of pins 8 Phoenix Contact 1764086 Contact spacing: 5.08 mm 50 pc(s)
PDF
/
Inventory: 1169
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 41.64mm
Length 12.6mm
Height 26mm
Technical
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 320V
Current - UL 15A
Wire Gauge or Range - AWG 12-30 AWG
Voltage - UL 300V
Number of Levels 1
Housing Color Grey
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 1.025 26.03mm
Pitch 0.200 5.08mm
Color Gray
Number of Positions 8
Type Plug, Female Sockets
Connector Type Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Wire Side)
Series COMBICON MVSTBR
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
