1763180
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

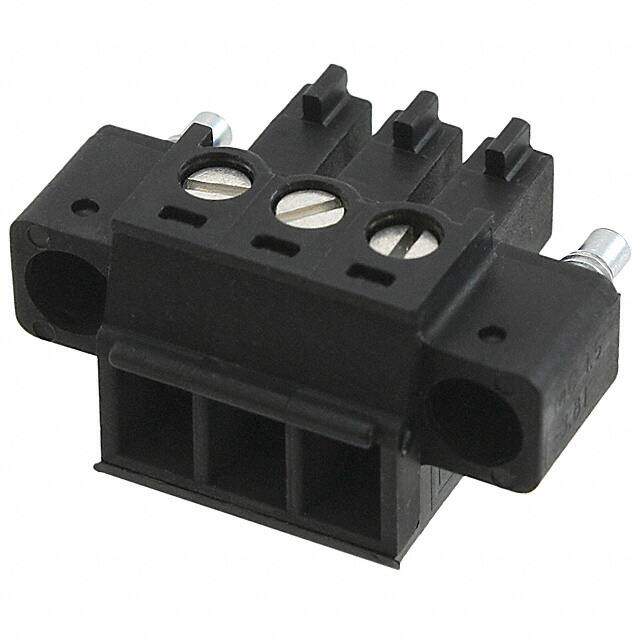

Socket enclosure - cable MC Total number of pins 3 Phoenix Contact 1763180 Contact spacing: 3.81 mm 50 pc(s)
PDF
/
Buying Options
Total Price: USD $2.88
Unit Price: USD $2.8776
≥1 USD $2.8776
≥10 USD $2.79664
≥100 USD $2.6136
≥500 USD $2.404512
≥1000 USD $2.36009
Inventory: 136
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2011
Series COMBICON MC
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 3
Color Black
Voltage - Rated 160V
Pitch 0.150 3.81mm
Insulation Height 0.437 11.10mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 160V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Dimensions
Height 16.1mm
Length 11.1mm
Width 21.82mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
