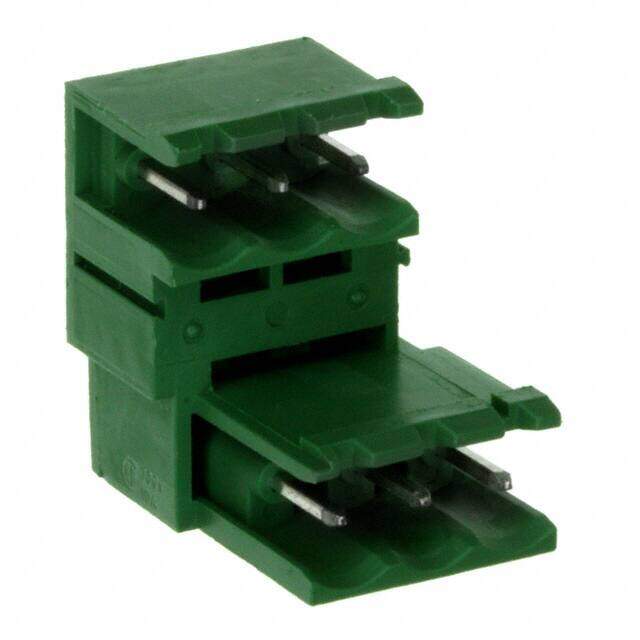

1763087
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 6POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $2.3
Unit Price: USD $2.2968
≥1 USD $2.2968
Inventory: 3257
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 162.000005g
Technical
Packaging Bulk
Published 2010
Series COMBICON MDSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Depth 23.7mm
Insulation Height 0.870 22.10mm
Current Rating 10A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 10A
Number of Levels 2
Current 12A
Number of Poles 3
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 3
Number of Ways 3
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 23.7mm
Length 17.78mm
Width 25.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
